CAC: Air Cirulators
Loren Cook Company Air Cirulators are designed for industrial and commercial applications requiring air circulators. All units are ETL listed in the US and Canda.
- Standard Air Circulators, with 4 mount options.
- CAC-ACH
- Oscillating: CAC-ACHO
- Washdown: CAC-IHPWD

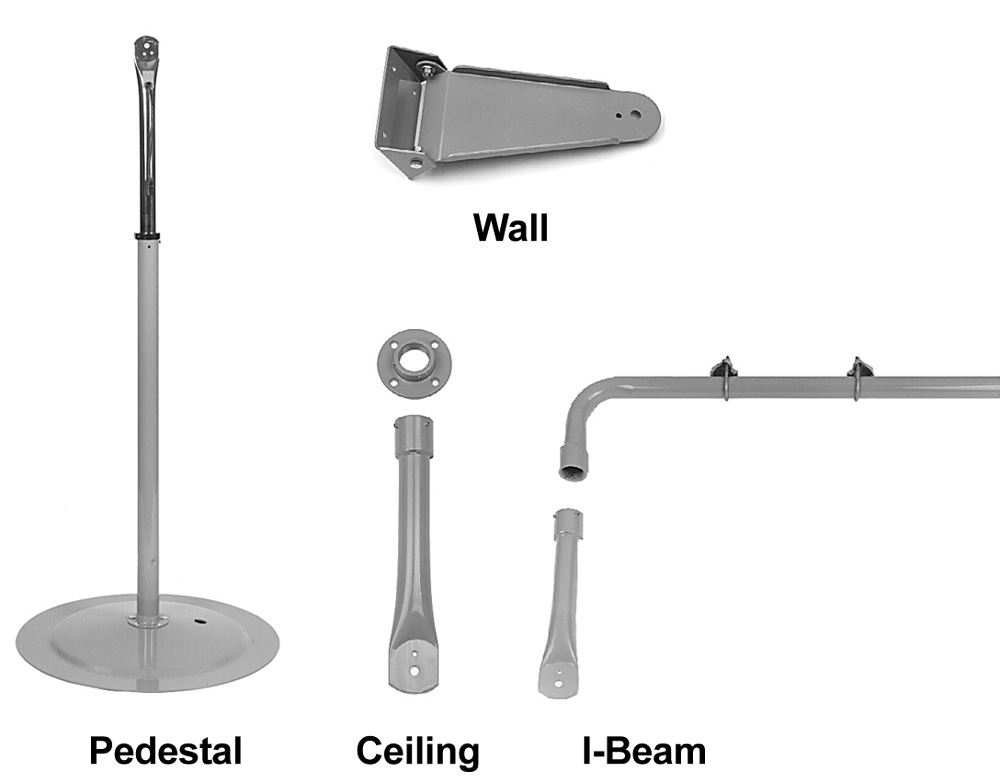

- Mounts
- Pedestal
- Wall
- I-Beam
- Ceiling
- Portable Blowers, on wheels.
- Direct Drive: CAC-PBD
- Belt Drive: CAC-PBB
- Ceiling Or Wall (requires special mount) Mounted Mini-Blower: CAC-MBDY.
- Suspension Blower: CAC-SBD.
- Ceiling Mounted Workstation: CAC-UTE.
Related Documents +-
- CAC Catalog post 2012 product
- CAC Manual pre 2012 product
See the Downloads tab for Specifications, Submittals and FanDrafter files
Standard Air Circulator
Features
- Fully assembled non-oscillating circulating fan heads
- Grill: Double locking, chrome plated steel wire guards
- Blade: Steel hub/spider and aluminum paddles
- Cord: SJT Type, 3-conductor 12' long
- Meets federal OSHA requirements
- ETL C/US Listed
Motor Specifications
- PSC motor with pull chain switch
- 2-Speed, 1-Phase
- 120V
- Totally enclosed
- Ball bearing
- Permanently lubricated
| Catalog Number | Prop. | HP | RPM | CFM (High/Low) |
AMPS | Sound db | Velocity Profile |
Height | Width | Depth | Ship Wt.(lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24CAC-ACH | 24" | 1/4 | 1100/800 | 6800/5000 | 2.5 | 67 | A | 27" | 27" | 14-1/2" | 40 |
| 30CAC-ACH | 30" | 1/4 | 1100/800 | 7900/6000 | 2.7 | 66 | B | 33-1/2" | 33-1/2" | 14-1/2" | 44 |
Standard Air Circulator, Oscillating
Features
- Fully assembled oscillating circulating fan heads
- Oscillates in a 90° arc or can be locked in a fixed position
- Metal gears in the oscillating unit allows the fan to operate at a maximum of 30° downward tilt
- Grill: Double locking, chrome plated steel wire guards
- Blade: Steel hub/spider and aluminum paddles
- Cord: SJT Type, 3-conductor 12' long
- Meets federal OSHA requirements
- ETL C/US Listed
Motor Specifications
- PSC motor with pull chain switch
- 2-Speed, 1-Phase,120V
- Totally enclosed
- Ball bearing, Permanently lubricated
Dimensions (Inches)
| Catalog Number | Prop. | HP | RPM | CFM (High/Low) |
AMPS | Sound db | Velocity Profile |
Height | Width | Depth | Ship Wt.(lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24CAC-ACH | 24" | 1/4 | 1100/800 | 6800/5000 | 2.5 | 67 | A | 27" | 27" | 14-1/2" | 40 |
| 30CAC-ACH | 30" | 1/4 | 1100/800 | 7900/6000 | 2.7 | 66 | B | 33-1/2" | 33-1/2" | 14-1/2" | 44 |
Standard Air Circulator, Washdown
Features
- Fully assembled non-oscillating circulating fan heads
- Grill: Heavy Zinc coated steel guards
- Blade: Steel hub/spider and aluminum paddles
- No cord-junction box provided for hard wiring
- Meets federal OSHA requirements
- ETL C/US Listed
Motor Specifications
- 120V or 240V
- Totally enclosed
- Ball bearing
- Permanently lubricated
- Wash down rated
| Catalog Number | Prop.Dia | HP | RPM | Volts | Amps (120v/240v) |
CFM | Sound db |
Velocity Profile |
Height | Width | Depth | Ship Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20CAC-IHPWD | 20" | 1/3 | 1725 | 120v or 240v | 4.5/2.2 | 7150 | 75 | F-1 | 22" | 22" | 14" | 46 |
| 24CAC-IHPWD | 24" | 1/3 | 1725 | 120v or 240v | 4.5/2.2 | 8200 | 77 | A-1 | 27" | 27" | 14" | 48 |
| 30CAC-IHPWD | 30" | 1/3 | 1725 | 120v or 240v | 4.5/2.2 | 9350 | 76 | B-1 | 33-1/2" | 33-1/2" | 14" | 52 |
Portable Blower, Direct Drive
Features
- Rocker switch
- SJT type 3 conductor, 12' long cord
- Aluminum, 3 paddle blade
- Spiral, wire front and rear guards
- Corrosion and dent proof high density polyethylene housing
- 8" Wheels
- Meets federal OSHA requirements
- ETL C/US Listed
Motor Specifications
- 120V, 1-Phase
- Ball bearing
- Permanent split capacitor
- Permanently lubricated
- 2-speed on 36", 1-speed on 42"
| Catalog Number | Size | Motor HP |
CFM | RPM | Amps | Sound db |
Velocity Profile |
Height | Width | Depth | Ship Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 36CAC-PBD | 36" | 3-Jan | 12500/9000 | 1040/730 | 5.5 | 79 | D | 37-3/4" | 36-5/16" | 18-1/2" | 82 |
| 42CAC-PBD | 42" | 2-Jan | 15600 | 1040 | 6 | 77 | K | 43-3/4" | 42-5/16" | 18-1/2" | 102 |

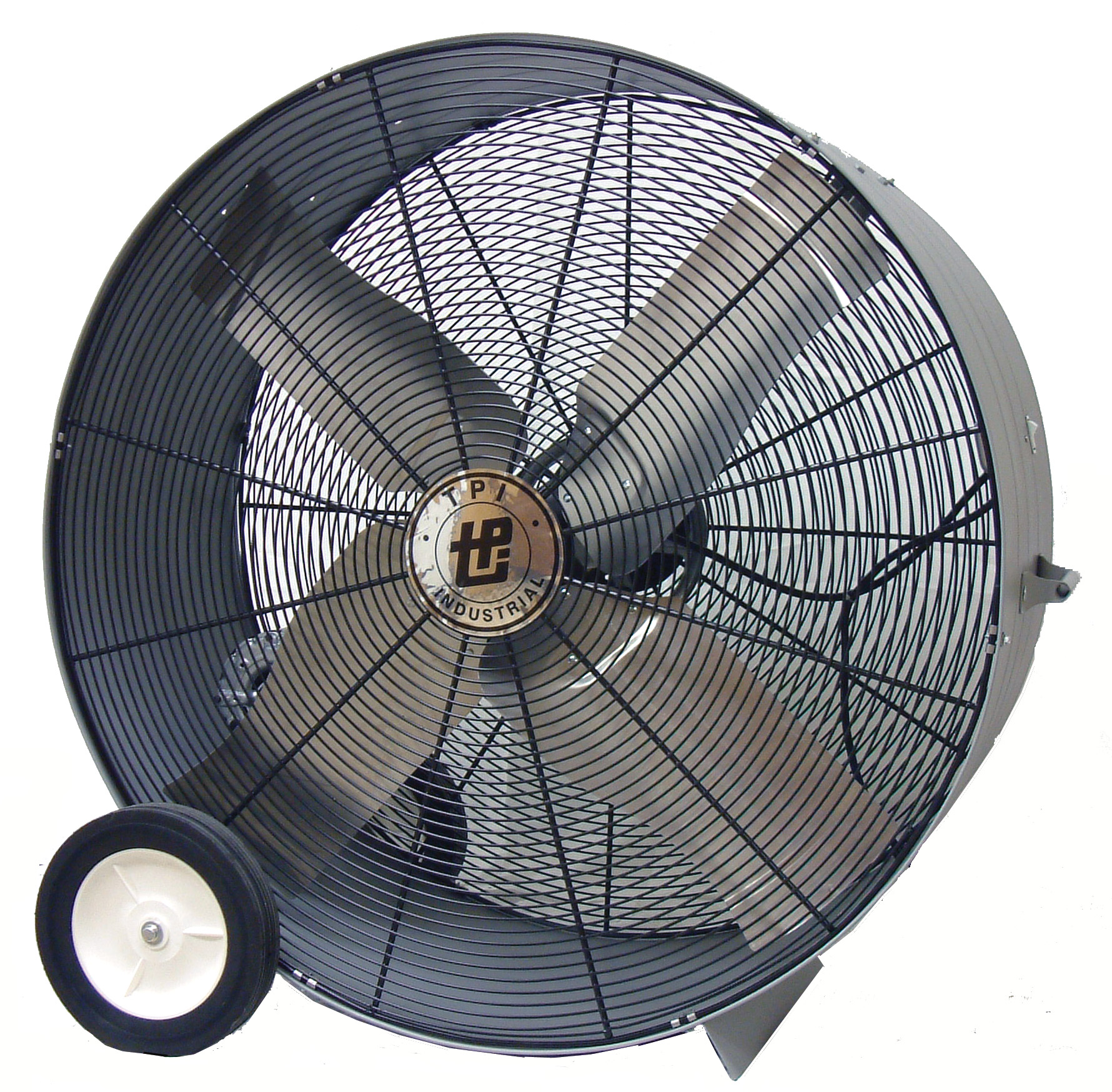

Portable Blower, Belt Drive
Features
- Rocker switch
- SJT type 3 conductor, 12' long cord
- Aluminum, 4 paddle blade
- Spiral, wire front and rear guards
- Corrosion and dent proof high density polyethylene housing
- 10" Wheels
- Meets federal OSHA requirements
- ETL C/US Listed
Motor Specifications
- 120V, 1-Phase
- Ball bearing
- Permanently lubricated
| Catalog Number | Size | Motor HP | CFM | RPM | Amps | Sound db | Velocity Profile | Height | Width | Depth | Ship Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 36CAC-PBB | 36" | 2-Jan | 14500 | 500 | 8 | 69 | G | 37-3/4" | 36-5/16" | 22-1/4" | 120 |
| 42CAC-PBB | 42" | 4-Mar | 18200 | 430 | 11 | 70 | H | 43-3/4" | 42-5/16" | 24-1/4" | 135 |
| 48CAC-PBB | 48" | 1 | 22700 | 390 | 15 | 69 | J | 49-3/4" | 48-5/16" | 24-1/4" | 155 |
Ceiling Or Wall Mounted Mini-Blower
Features
- Pull chain switch
- Head rotates 360° vertical and horizontal
- SJT type 3 conductor, 10' long cord
- Aluminum blade
- Powder Coated Spiral, wire front and rear guards
- Corrosion and dent proof high density polyethylene housing
- Meets federal OSHA requirements
- ETL C/US Listed
Motor Specifications
- 120V, 1-Phase
- Ball bearing
- Permanently lubricated
| Catalog Number | Size | MotorHP | CFM | RPM | Amps | Sound db |
Velocity Profile |
Height | Width | Depth | Ship Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24CAC-MBDY | 24" | 1/4 | 6800/5000 | 1140/1070 | 2.2 | 72 | A | 29" | 28-1/2" | 14-1/4" | 52 |
| 30CAC-MBDY | 30" | 1/4 | 7800/6000 | 1040/730 | 2.5 | 77 | B | 38" | 37-1/2" | 14-1/2" | 58 |

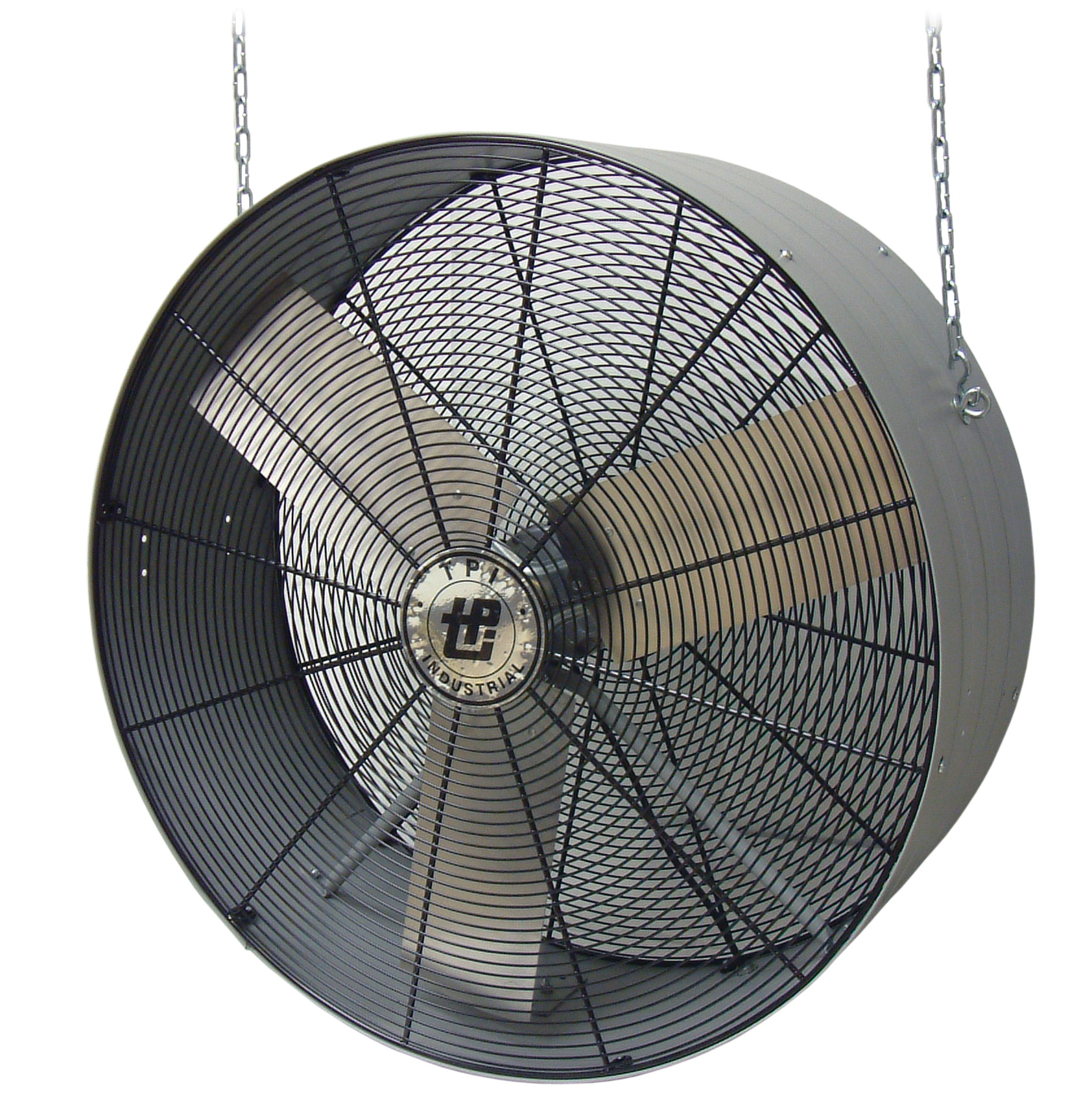

Suspension Blower
Features
- Rocker switch
- SJT type 3 conductor, 12' long cord
- Aluminum blade
- Powder Coated Spiral, wire front and rear guards
- Corrosion and dent proof high density polyethylene housing
- Meets federal OSHA requirements
- ETL C/US Listed
Motor Specifications
- 120V, 1-Phase
- 36" 2-Speed
- 42" 1-Speed
- Ball bearing
- Permanently lubricated
- Permanent split capacitor
| Catalog Number | Size | MotorHP | CFM | RPM | Amps | Sound dB | Velocity Profile | Height | Width | Depth | ShipWt. (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 36CAC-SBD | 36" | 1/3 | 12500 / 9000 |
1050 | 5.6 | 79 | D | 36-5/16" | 33" | 13-5/8" | 70 |
| 42CAC-SBD | 42" | 1/2 | 16200 | 825 | 7.9 | 77 | K | 42-5/16" | 38-1/2" | 13-5/8" | 99 |
Ceiling Mounted Workstation
Features
- Pull chain switch
- Head rotates 360° vertical and horizontal
- SJT type 3 conductor, 10' long cord
- Aluminum blade
- Powder Coated Spiral, wire front and rear guards
- Corrosion and dent proof high density polyethylene housing
- Meets federal OSHA requirements
- ETL C/US Listed
Motor Specifications
- 120V, 1-Phase
- 3-Speed
- Totally enclosed
- Sleeve bearing
- Permanently lubricated
- Permanent split capacitor
| Catalog Number | Size | Motor HP |
CFM | RPM | Amps | Sound dB |
Velocity Profile |
Height | Width | Depth | Ship Wt.(lbs) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18CAC-UTE | 18" | 1/8 | 4600 | 4200 | 3200 | 1660 | 1484 | 1200 | 2.2 | 65 | E | 21-1/2" | 20-1/2" | 10-1/2" | 20 |
Catalog
- CAC Catalog post 2012 product
Manual
- CAC Manual pre 2012 product
Specifications
- CAC-ACH Typical Specification
- CAC-ACHO Typical Specification
- CAC-IHPWD Typical Specification
- CAC-PBD Typical Specification
- CAC-PBB Typical Specifications
- CAC-MBDY Typical Specifications
- CAC-MBDY Typical Specifications
- CAC-SBD Typical Specifications
- CAC-UTE Typical Specifications
Submittals
- CAC-M High Volume Mobile Direct Drive submittal
- CAC-P Commerical Duty Pedestal Mounted submittal
- CAC-W Commercial Duty Wall/Ceiling Mounted submittal
- CAC-FH High Velocity/High Volume Floor Mounted submittal
- CAC-WH High Velocity/High Volume Wall/Ceiling Mounted submittal
- CAC-WW Washdown Wall/Ceiling Mounted submittal
- CAC-WX Hazardous Location Wall Mounted submittal
- CAC-CH High Velocity/High Volume Ceiling Mounted submittal
- CAC-MH High Velocity/High Volume Mobile submittal
- CAC-PO Wide Area Oscillating Pedestal Mounted submittal
- CAC-WO Wide Area Oscillating Wall/Ceiling Mounted submittal
FanDrafter files
