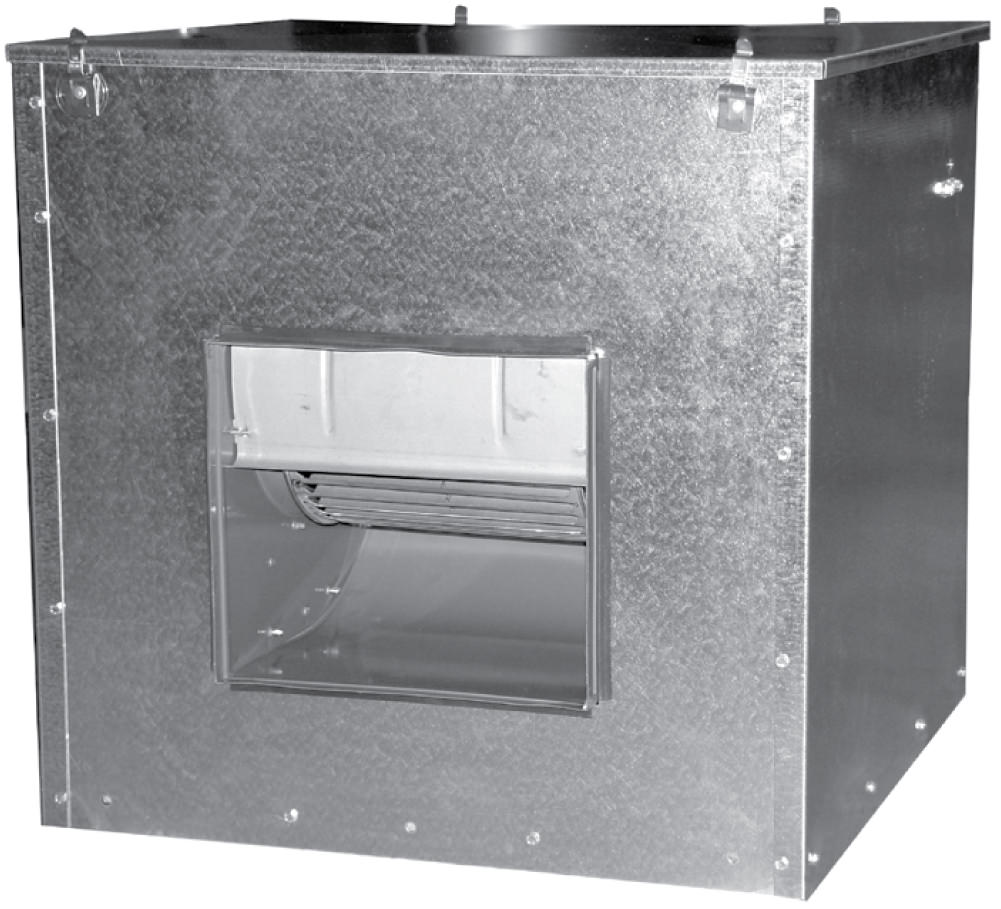

KSP Side Discharge

KSP Side Discharge

Standard Construction Features

Standard Construction Features

Standard Construction Features

Standard Construction Features

Standard Construction Features

Standard Construction Features

ISO, AMCA, UL, high w ind, and seismic certification logos

Certifications, vary by model

LOREN COOK COMPANY’s KSP product line provides maximum performance and durability in kitchen supply applications.

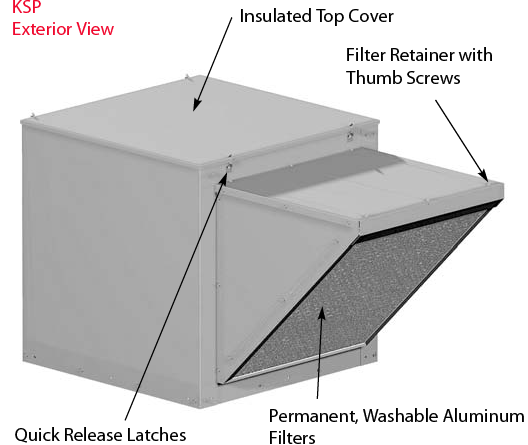

  • The insulated top cover provides weather protection for the motor and drive components.
    Quick release latches provide tool-free access for inspection and maintenance of motor and drive components.

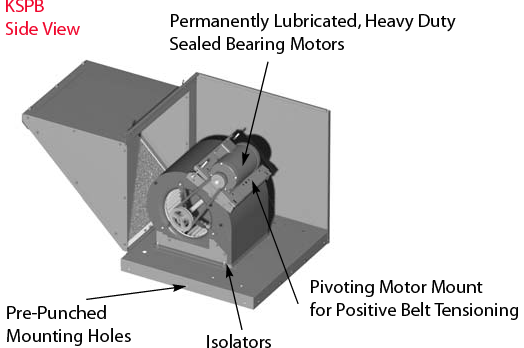

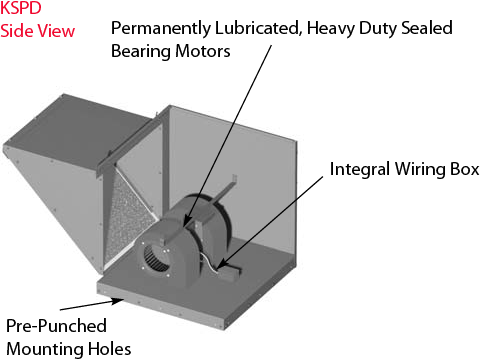

  • Blower assembly is supported by rubber isolators to reduce noise and vibration level transmitted to the supporting structure.
  • Integral 3” skirt with pre-punched mounting holes for ease of installation.
  • Intake hood with 1” permanent, washable aluminum filters standard.
  • Reinforcing cross breaks in intake hood top to prevent drumming.
  • Minimum 18 gauge galvanized steel housing.
    Corrosion resistant fasteners.
Related Documents

See the Downloads tab for specifications, submittals and FanDrafter files

See also ASP

  • KSPD

  • KSPB

  • Downloads

VCR

LOREN COOK COMPANY certifies that the KSPD shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program.

Type KSPD are furnished standard with UL 762 and CUL 762 listings (Power Ventilator for Restaurant Exhaust Appliances/YZHW) when furnished with factory supplied motor.

All sizes are available with express service. Read more

KSPD

Filtered Kitchen Supply
Packaged Ventilator
Side or Bottom Discharge
Direct Drive

The KSP product line includes both KSPD direct drive units and KSPB belt drive units. The KSPD is available in 3 different cabinet sizes with flow rates ranging from 100 CFM to 1800 CFM and static pressures up to 0.75 inches.

  • Impeller Size: 9 - 12 in
  • Flow: 77 - 1,810 CFM
  • SP: 0 - .75 in

Description: Fan shall be a side intake, roof mounted, direct driven, centrifugal filtered supply fan.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705). Fan shall bear the AMCA Certified Ratings Seal for Air Performance.

Construction: Fan shall be of bolted construction utilizing corrosion resistant fasteners. Housing shall be minimum 18 gauge galvanized steel, bolted to a minimum 16 gauge steel fan base with prepunched mounting holes. Unit shall be provided with an insulated top cover and one inch washable permanent aluminum filter. The motor assembly shall be mounted on rubber vibration isolators. Unit shall bear an engraved aluminum nameplate and shall be shipped in ISTA Certified Transit Tested Packaging.

Wheel: Wheel shall be centrifugal forward curved type, constructed of galvanized steel. Wheel shall be balanced in accordance with AMCA Standard 204-96, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be Nema design B with class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Product: Fan shall be model KSPD as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)
bottom dimension drawing dimension drawing side discharge

Model A Sq. B C
(Height x Width)
D T Sq. Material Gauges Approx.
Ship Wt.
Lbs.
Housing Base
94 - 99 KSPD 24-11/16 24 18 x 18-1/4 17-1/4 24-1/4 18 16 190
103 - 106 KSPD 28-11/16 27 21 x 22-1/4 20-1/4 28-1/4 18 16 210
122 - 127 KSPD 32-11/16 32-1/4 26-3/16 x 26-1/2 25-5/8 32-1/4 18 16 270
VCR

LOREN COOK COMPANY certifies that the KSPB shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type KSPB are furnished standard with UL 762 and CUL 762 listings (Power Ventilator for Restaurant Exhaust Appliances/YZHW) when furnished with factory supplied motor.

All sizes are available with express service. Read more

KSPD

Filtered Kitchen Supply
Packaged Ventilator
Side or Bottom Discharge
Belt Drive

The KSPB is available in 6 different sizes with wheel diameters ranging from 9” to 20”, with flow rates from 400 CFM to 12,000 CFM and static pressures up to 1.75 inches.
  • Impeller Size 9 - 20 in
  • Flow: 200 - 14,000 CFM
  • SP: 0-3 in

Description:Fan shall be a side intake, roof mounted, belt driven, centrifugal filtered supply fan.

Certifications - Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705). Fan shall bear the AMCA Certified Ratings Seal for Sound and Air Performance.

Construction - Fan shall be of bolted construction utilizing corrosion resistant fasteners. Housing shall be minimum 18 gauge galvanized steel, bolted to a minimum 16 gauge steel fan base with prepunched mounting holes. Unit shall be provided with an insulated top cover and one inch washable permanent aluminum filter. Internal blower and motor assembly shall be mounted on rubber vibration isolators. Unit shall bear an engraved aluminum nameplate and shall be shipped in ISTA Certified Transit Tested Packaging.

Wheel: Wheel shall be DWDI centrifugal forward curved type, constructed of painted steel. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be Nema design B with class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings

Size 90-180: Bearings shall be permanently lubricated, sealed ball type selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Size 200: Bearings shall be designed and individually tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball type in a cast iron housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150 percent of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be model KSPB as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)
VCR-B dimension drawing
Model A Sq. B C
(Height x Width)
D E F G T Sq. Discharge
Opening
(H x W)
J
90 KSPB 24-11/16 24 18 x 18-1/4 17-1/4 6-7/32 7 3 24-1/8 10-1/8 x 11-9/16 5/1/4
100 KSPB 28-11/16 27 21 x 22-1/4 20-1/4 7-5/8 8-7/16 3 28-1/8 11-1/4 x 12-7/8 5-1/4
120 KSPB 32-11/16 32-1/4 26-3/16 x 26-1/2 25-5/8 8-3/8 8-3/4 3 32-1/8 13-5/16 x 15-3/8 5-1/4
150 KSPB 32-11/16 37-7/8 31-5/16 x 28-1/2 30-3/4 6-7/8 6-5/16 3 32-1/8 15-3/4 x 18-3/8 5-1/4
180 KSPB 36-11/16 41-7/16 35-7/16 x 30-1/4 34-13/16 7-1/4 5-5/16 3 36-1/8 18-3/4 x 21-5/8 5-1/4
200 KSPB 48-11/16 49-7/16 37-7/16 x 42-1/4 36-13/16 11-11/16 12-15/16 3 48-1/8 24-7/8 x 24-3/4 5-3/4
Model Filters Material
Gauges

Roof Opening Square*
for curbs supplied by Cook only.

Approx.
Ship Wt.
Lbs.
Qty. Size Base Housing
90 KSPB 1 17-3/4 x 22-3/4 16 18 19-1/2 183
100 KSPB 1 21-3/4 x 27 16 18 23-1/2 218
120 KSPB 1 25-3/4 x 34-3/8 16 18 27-1/2 253
150 KSPB 2 20-3/4 x 28 16 18 27-1/2 327
180 KSPB 2 23-5/8 x 29-3/4 16 18 31-1/2 392
200 KSPB 2 25 x 41-3/4 16 18 43-1/2 589
