LOREN COOK COMPANY ASP and ASP-T Filtered Air Supply Packages are available in six quiet and efficient sizes supplying air from 400 to 14,000 CFM. Installation is quick and easy. A three inch skirt is provided for attachment to the roof curb. Weather protection and long life is ensured by an enclosed, galvanized cabinet and baffled air intakes. An insulated top cover reinforced with cross breaks prevents drumming. Overall vibration is prevented with factory installed vibration isolators on the motor and blower. In addition, the cover is removable allowing quick access to filters, blower, and motor assembly for service, inspection and cleaning. Fan bearings and motor bearings are permanently lubricated, and filters are of all aluminum construction.

  • The motors are heavy duty, sealed ball bearing type.
  • The drives are cast iron.
  • Filters are one inch, washable, permanent type.
  • The blower is a double width, double inlet, (DWDI), forward curved centrifugal type.
  • A pivoting motor mount with a screw adjustment is provided for easily maintaining the proper belt tension.

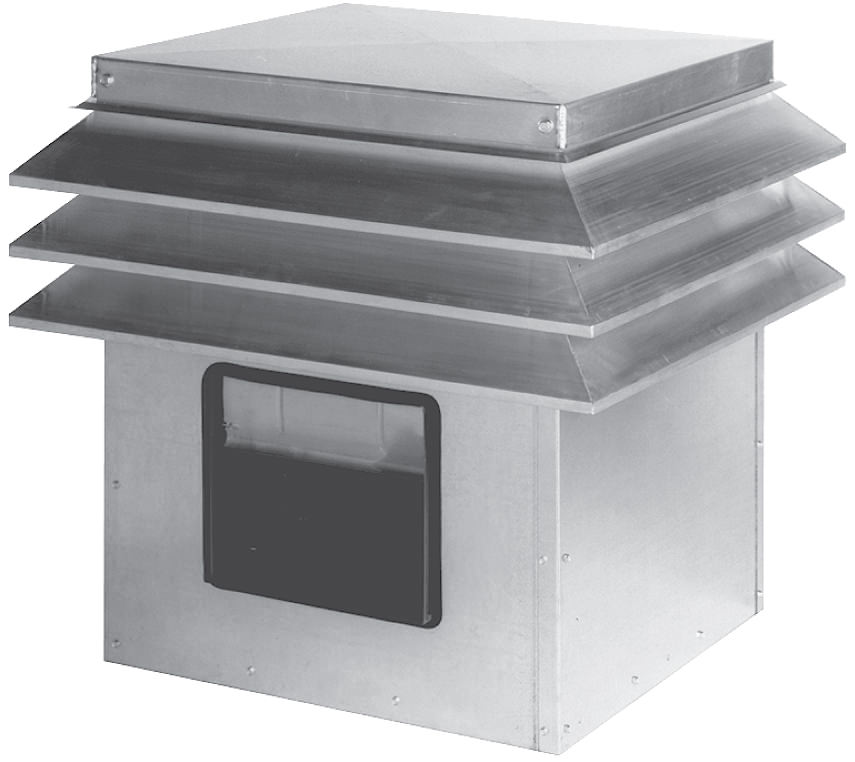

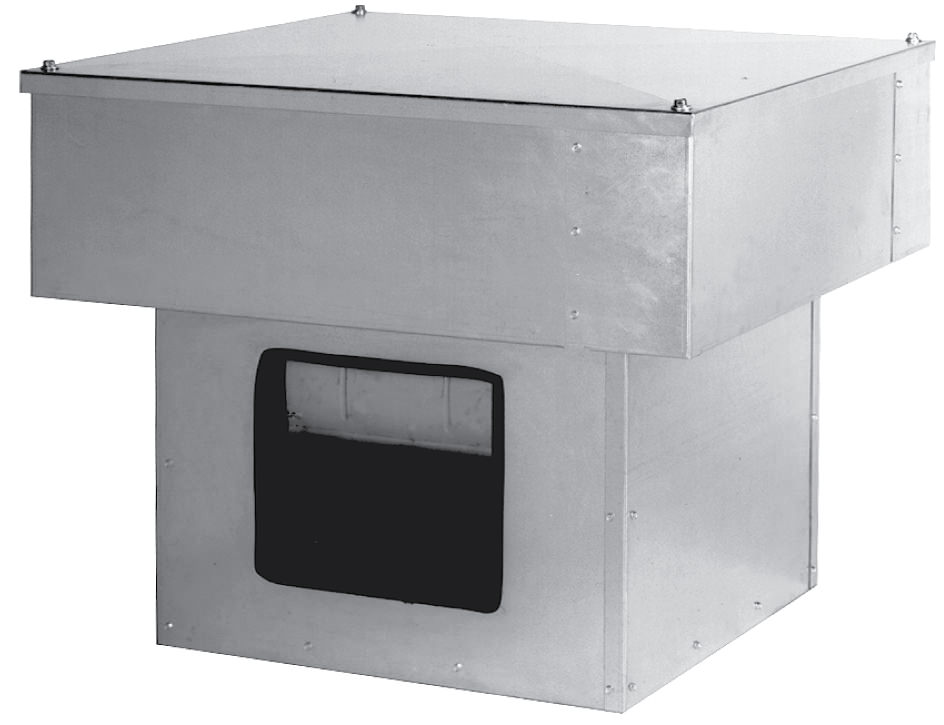

Side Discharge

  • Both units are available in side discharge configuration allowing for a wide range of versatility concerning placement of the intake unit in a supply system.
Related Documents

See the Downloads tab for specifications, submittals and FanDrafter files

See also KSP

  • ASP

  • ASP-T

  • Downloads

VCR
VCR

LOREN COOK COMPANY certifies that the ASP shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type ASP is furnished standard with UL 705 and CUL 705 listing (Power Ventilator/ZACT) when furnished with factory supplied motor.

All sizes are available with express service. Read more

ASP

Air Supply Package
Forward Curve, Belt Drive
Bottom or Side Discharge
Roof Mounted

The ASP Hooded Filtered Air Supply Package is constructed of heavy gauge galvanized steel and designed for maximum weather protection.

  • Bottom or Side Discharge
  • Impeller Size: 9 - 20 in
  • Flow: 400 - 14,000 CFM
  • SP: 0 - 2 in

Description: Fan shall be a hooded, roof mounted, belt driven, centrifugal filtered supply fan.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705). Fan shall bear the AMCA Certified Ratings Seal for Sound and Air Performance.

Construction: The fan shall be of bolted construction utilizing corrosion resistant fasteners. Housing shall be minimum 18 gauge galvanized steel, bolted to a minimum 16 gauge steel fan base with prepunched mounting holes. Unit shall be provided with an insulated top cover and 1" washable permanent aluminum filters. Internal blower and motor assembly shall be mounted on rubber vibration isolators. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM, static pressure, and maximum fan RPM. Unit shall be shipped in ISTA Certified Transit Tested Packaging.

Wheel: Wheel shall be DWDI centrifugal forward curved type, constructed of painted steel. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be Nema Design B with Class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be ball bearing type selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150% of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be model ASP as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)

bottom dimension drawing
Size A B C D E F G T
Sq.
Discharge
Opening
(H x W)
Filters Material
Gauges
Roof
Opening
Square*
Approx.
Ship
Wt.-Lbs.**
Bottom Side Qty Size Base Housing
90 33-1/8 26-1/2 27-1/2 10-1/2 6-7/32 7 5-1/4 6-5/32 24-1/8 10-1/8 x 11-9/16 4 10-1/4 x
19-3/4
16 18 19-1/2 230
100 38-1/2 30 31 12-1/4 7-5/8 8-7/16 5-1/4 7-1/2 28-1/8 11-1/4 x 12-7/8 4 12 x 24 16 18 23-1/2 250
120 42-1/2 33-1/4 37-1/4 16-1/2 8-3/8 8-3/4 5-1/4 8-1/4 32-1/8 13-5/16 x 15-3/8 4 16 x 28 16 18 27-1/2 290
150 45-3/4 36-1/4 39-3/4 16-1/2 6-7/8 6-5/16 5-1/4 6-3/4 32-1/8 15-3/4 x 18-3/8 4 16 x 28 16 18 27-1/2 330
180 55-3/4 40-1/4 49 22-3/4 7-1/4 5-5/16 5-1/4 7-1/8 36-1/8 18-3/4 x 21-5/8 4 20 x 32 16 18 31-1/2 500
200 68 47-1/4 60 29 11-11/16 10-5/8 5-3/4 11-11/16 48-1/8 24-3/4 x 24-3/4 4 27-3/4 x 44 16 18 43-1/2 750
Weight in pounds. *Roof opening size for curbs supplied by LOREN COOK Co. only. **Less motor.
VCRVCR

LOREN COOK COMPANY certifies that the ASP-T shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type ASP-T is furnished standard with UL 705 and CUL 705 listing (Power Ventilator/ZACT) when furnished with factory supplied motor.

All sizes are available with express service. Read more

ASP-T

Tiered Air Supply Package
Forward Curve, Belt Drive
Bottom or Side Discharge
Roof Mounted

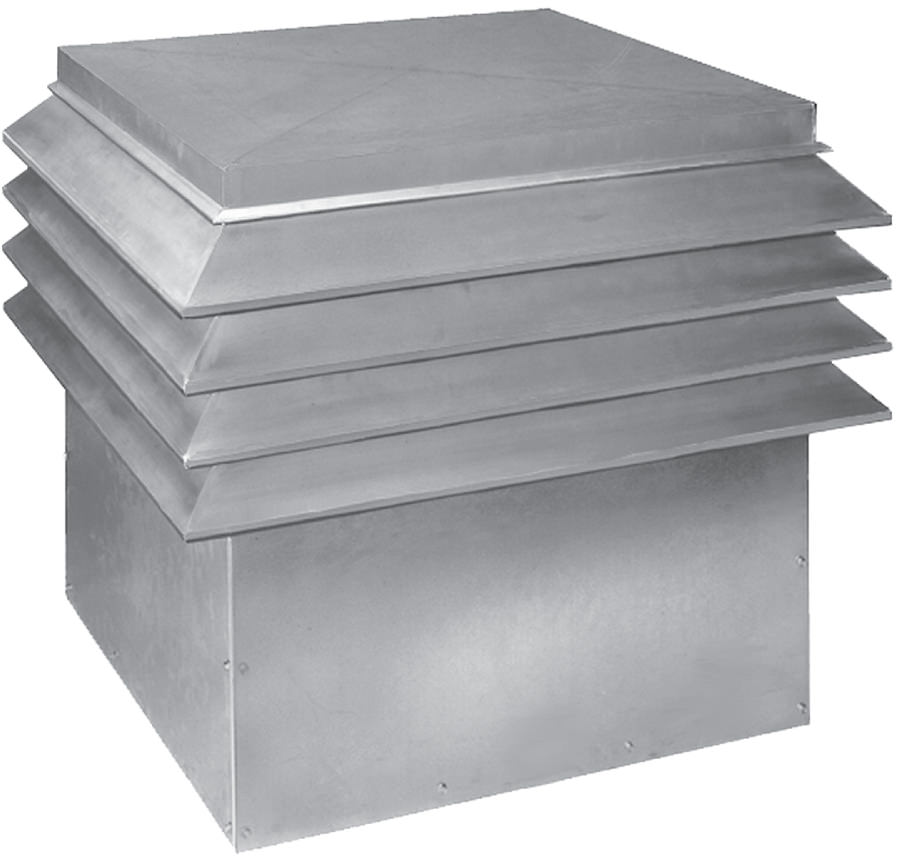

The ASP-T Tiered Filtered Air Supply Package features a heavy gauge extruded aluminum tiered hood.
  • Bottom or Side Discharge
  • Impeller Size 9 - 20 in
  • Flow: 400 - 14,000 CFM
  • SP: 0 - 2 in

Description: Fan shall be a tiered aluminum hooded, roof mounted, belt driven, centrifugal filtered supply fan.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705). Fan shall bear the AMCA Certified Ratings Seal for Sound and Air Performance.

Construction: The fan shall be of bolted construction utilizing corrosion resistant fasteners. Hood shall be tiered extruded aluminum, bolted to a minimum 16 gauge steel fan base with prepunched mounting holes. Unit shall be provided with an insulated aluminum top cover and 1" washable permanent aluminum filters. Internal blower and motor assembly shall be mounted on rubber vibration isolators. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM, static pressure, and maximum fan RPM. Unit shall be shipped in ISTA Certified Transit Tested Packaging.

Wheel: Wheel shall be steel, centrifugal forward curved type. Wheel shall utilize an aerodynamic aluminum inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor - Motor shall be Nema Design B with Class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be ball bearing type selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150% of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be model ASP-T as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)
VCR-B dimension drawing
Size A B C D E F G T
Sq.
Discharge
Opening
(H x W)
Filters Material
Gauges
Number of
Tiers
Roof
Opening
Square*
Approx.
Ship
Wt.-Lbs.**
Bottom Side Qty Size Base Housing
90 30-7/8 29-1/4 30-1/4 13-1/4 6-7/32 7 5-1/4 6-5/32 10-1/8 x
11-9/16
24-1/8 4 12 x
18-1/4
16 18 3 19-1/2 230
100 34-7/8 31 32 13-1/4 7-5/8 8-7/16 5-1/4 7-1/2 11-1/4 x
12-7/8
28-1/8 4 12 x 22-1/4 16 18 3 23-1/2 250
120 38-7/8 33-1/2 37-1/2 16-3/4 8-3/8 8-3/4 5-1/4 8-1/4 13-5/16 x 15-3/8 32-1/8 4 15-1/2 x
26-1/4
16 18 4 27-1/2 290
150 38-7/8 36-1/2 40 16-3/4 6-7/8 6-5/16 5-1/4 6-3/4 15-3/4 x 18-3/8 32-1/8 4 15-1/2 x
26-1/4
16 18 4 27-1/2 330
180 42-7/8 44-3/4 53-1/2 27-1/4 7-1/4 5-5/16 5-1/4 7-1/8 18-3/4 x 21-5/8 36-1/8 4 26 x
30-1/4
16 18 7 31-1/2 500
200 54-7/8 49 61-3/4 30-3/4 11-11/16 10-5/8 5-3/4 11-11/16 24-3/4 x 24-3/4 48-1/8 4 29-1/2 x
42-1/4
16 18 8 43-1/2 750
Weight in pounds. *Roof opening size for curbs supplied by LOREN COOK Co. only. **Less motor.
