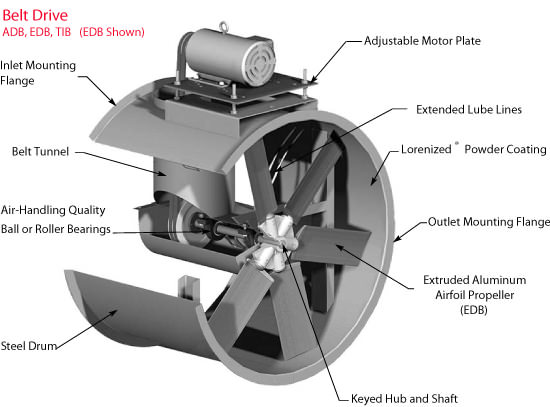

Standard Construction Features

Standard Construction Features

Standard Construction Features

Standard Construction Features

AMCA-Sound & Air Cert. logo

ISO 9001, US-Green , AMCA, CSA, US-C-UL, and logos - by model

Designed to be easily mounted in any orientation in either ducted or non-ducted systems. All units include integral inlet and outlet flanges for direct in-line mounting. The units are produced in an ISO 9001 certified facility and are listed by Underwriters Laboratories (UL 705) and UL Listed for Canada (cUL 705).

Triton Series: Steel Propeller

  • Designed using Computational Fluid Dynamics (CFD) and Finite Element Analysis (FEA) to provide optimum air flow, efficiency, quality and durability.
  • Constructed of heavy gauge steel components in a fully welded assembly.
  • Designed for large volumes of air at medium pressure levels.
  • Statically and dynamically balanced for vibration free operation.

A Series: Cast Aluminum Airfoil Propeller

  • Designed for heavy commercial or industrial applications where large volumes of air are required at low static pressures.
  • Constructed of heavy gauge aluminum with 6 cast blades and a cast hub.
  • Blade pitch is determined at the factory and the blades are locked into place with roll pins.
  • Statically and dynamically balanced for vibration free operation.

E Series:Extruded Aluminum Airfoil Propeller

  • E Series airfoil blade has a non-overloading characteristic such as is found in a centrifugal type wheel.
  • Designed for use where higher static pressures are required.
  • Constructed with 4 or 6 extruded aluminum airfoil blades and mounted in a cast aluminum hub.
  • Blade pitch is determined at the factory and the blades are locked into place with roll pins.
  • Statically and dynamically balanced for vibration free operation.
Related Documents

See the Downloads tab for specifications, submittals and FanDrafter files

See also Propeller Roof
See also Propeller Hooded
See also Propeller Wall Fans
See also Propeller Upblast

  • TID

  • TIB

  • ADD

  • ADB

  • EDD

  • EDB

  • Downloads

lxu

Type TID is furnished standard with UL 705 & cUL 705 listing (Power Ventilator/ZACT).

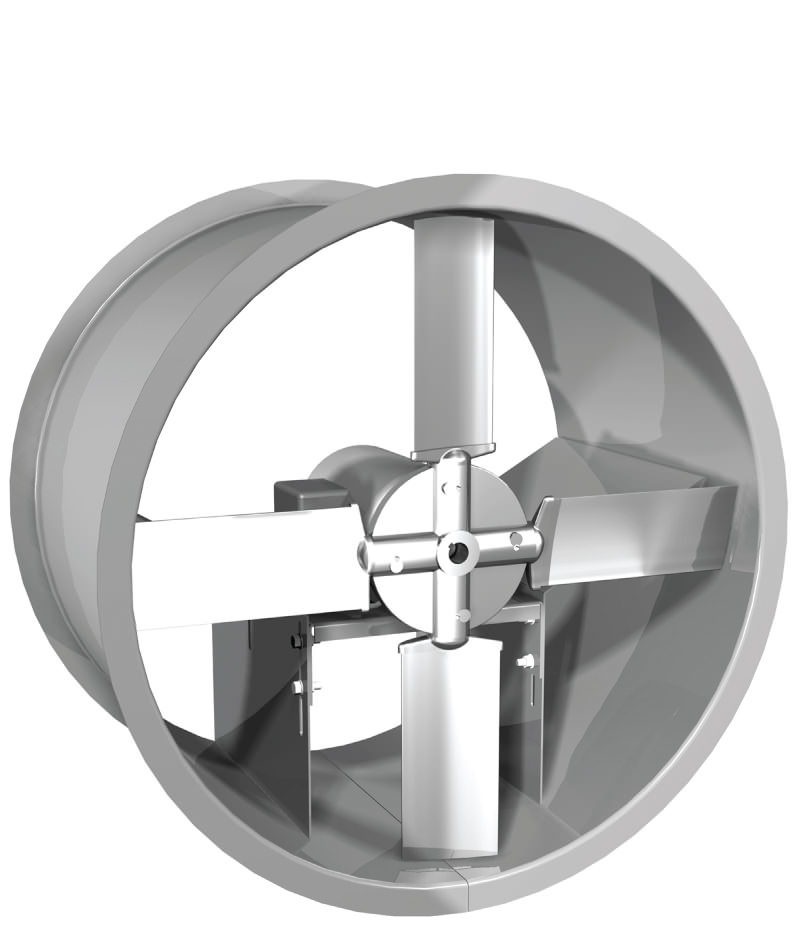

TID

Tube Axial Fan
High Pressure
Triton Steel Propeller
Direct Drive

  • TID utilizes the COOK Triton steel propeller.
  • TID is a direct drive unit available in 8 sizes from 20 to 60 inches. Performance ranges from 2,700 to 64,000 CFM, with statice pressures from 0 to 1 inch.

Description: Fan shall be a tube axial, direct drive, steel propeller fan.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705).

Construction: Fan shall be of welded and bolted construction utilizing corrosion resistant fasteners. The steel drum shall be constructed of minimum 14 gauge steel with integral flanges on both inlet and outlet. Unit shall bear an engraved aluminum nameplate and shall be shipped in ISTA Certified Transit Tested Packaging.

Coating: All steel fan components shall be Lorenized® with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hours salt spray under ASTM B117 test method.

Propeller: Propeller shall be a high efficiency fabricated steel design with blades securely fastened to a minimum 7 gauge hub. The hub shall be keyed and locked to the shaft utilizing two set screws or a taper lock bushing. Propeller shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be Nema design B with class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Product: Fan shall be type TID as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)

pw-xwd dimension drawing

Size A B C Drum Gauge Ship Wt.
20 19 23-1/2 1-1/2 14 ga. 90
24 19 27-1/2 1-1/2 12 ga. 115
30 25 33-1/2 1-1/2 12 ga. 165
36 25 39-1/2 1-1/2 12 ga. 190
42 30 45-3/4 1-5/8 10 ga. 310
48 31 52-3/4 2-1/8 10 ga. 395
54 41 58-3/4 2-1/8 10 ga. 500
60 42 64-3/4 2-1/8 10 ga. 630

Weight in pounds, including standard ODP motor.

lxu

LOREN COOK COMPANY certifies that the TIB shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program. TIB performance ratings shown on pages 14-16.

Type TIB is furnished standard with UL 705 & cUL 705 listing (Power Ventilator/ZACT)when furnished with factory supplied motor..

Type TIB is available with UL listing for “Power Ventilator for Smoke Control Systems.”

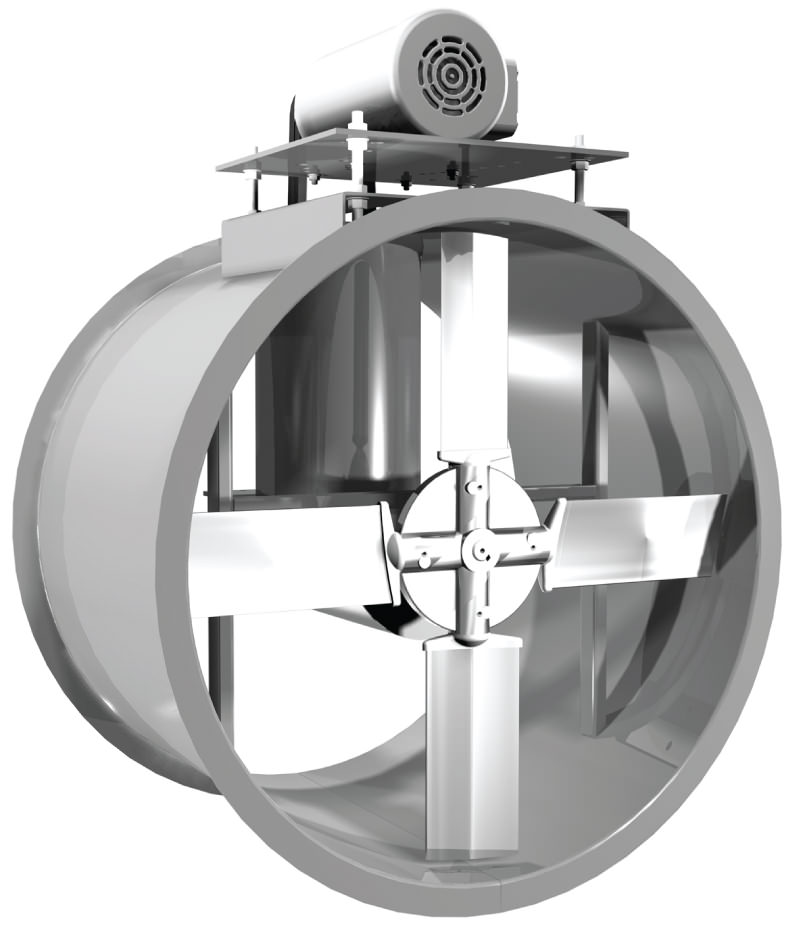

TIB

Tube Axial Fan
High Pressure
Triton Steel Propeller
Belt Drive

  • TIB utilizes the COOK Triton steel propeller.
  • TIB is a belt drive unit available in 9 sizes from 20 to 72 inches. Performance ranges from 2,800 to 98,000 CFM, with static pressures from 0 to 1.25 inches.
  • TIB is available with UL/cUL listing for “Power Ventilator for Smoke Control Systems”.

Description : Fan shall be a tube axial, belt driven, steel propeller fan.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705). For smoke control applications, fan shall be listed by Underwriters Laboratories (Power Ventilator for Smoke Control Systems) for US and Canada. Fan shall bear the AMCA Certified Ratings Seal for Air Performance.

Construction: Fan shall be of welded and bolted construction utilizing corrosion resistant fasteners. The steel drum shall be constructed of minimum 14 gauge steel with integral flanges on both inlet and outlet. External lubrication lines shall be furnished for lubrication of fan bearings. Adjustable motor plate shall use threaded studs for positive belt tensioning and alignment. Unit shall bear an engraved aluminum nameplate and shall be shipped in ISTA Certified Transit Tested Packaging.

Coating: All steel fan components shall be Lorenized® with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Propeller: Propeller shall be a high efficiency fabricated steel design with blades securely fastened to a minimum 7 gauge hub. The hub shall be keyed and locked to the shaft utilizing two set screws or a taper lock bushing. Propeller shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be Nema design B with class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be designed and individually tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball type in a cast iron housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150 percent of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be type TIB as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)

pw-xwd dimension drawing

Size A B C D E F Drum Gauge Ship Wt.
20 20 19-1/2 1-1/2 11-3/8 15 12-7/16 14 ga. 90
24 21 27-1/2 1-1/2 14-1/8 20 16-1/8 12 ga. 147
30 25 33-1/2 1-1/2 19-1/8 22 18-1/8 12 ga. 224
36 30 39-1/2 1-1/2 18-3/4 25 21-1/8 12 ga. 315
42 31 45-3/4 1-5/8 19-3/8 29 21-1/8 10 ga. 390
48 33 52-3/4 2-1/8 19-3/4 31 21-1/8 10 ga. 470
54 38 58-3/4 2-1/8 24-1/4 35 24-1/8 10 ga. 585
60 41 64-3/4 2-1/8 24-1/4 35 24-1/8 10 ga. 705
72 48 76-3/4 2-1/8 27 35 24-1/8 10 ga. 905

Weight in pounds, less motor.

lxu

Type ADD is furnished standard with UL 705 & cUL 705 listing (Power Ventilator/ZACT).

ADD

Tube Axial Fan
Cast Aluminum Propeller
Direct Drive

  • ADD utilizes the COOK “A Series” cast aluminum airfoil propeller.
  • ADD is a direct drive unit available in 4 sizes from 12 to 24 inches. Performance ranges from 300 to 8,000 CFM, with static pressures from 0 to 1/2 inches.

Description: Fan shall be a tube axial, direct drive, cast aluminum airfoil propeller fan.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705).

Construction: Fan shall be of welded and bolted construction utilizing corrosion resistant fasteners. The steel drum shall be constructed of minimum 14 gauge steel with integral flanges on both inlet and outlet. Unit shall bear an engraved aluminum nameplate and shall be shipped in ISTA Certified Transit Tested Packaging.

Coating: All steel fan components shall be Lorenized® with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Propeller: Propeller shall be cast aluminum airfoil design with cast aluminum hub. The blade pitch shall be factory set and locked using set screws and roll pin. The hub shall be keyed and locked to the shaft utilizing two set screws or a taper lock bushing. Propeller shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be heavy duty type with permanently lubricated sealed ball bearings and furnished at the specified voltage, phase and enclosure.

Product: Fan shall be type ADD as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)

pw-xwd dimension drawing

Size A B C Drum Gauge Ship Wt.
12 16 15-1/2 1-1/2 14 ga. 76
16 16 19-1/2 1-1/2 14 ga. 90
20 19 23-1/2 1-1/2 14 ga. 120
24 19 27-1/2 1-1/2 12 ga. 173

Weight in pounds, including standard ODP motor.

lxu

Type ADB is furnished standard with UL 705 & cUL 705 listing (Power Ventilator/ZACT) when furnished with factory supplied motor.

ADB

Tube Axial Fan
Cast Aluminum Propeller
Belt Drive

  • ADB utilizes the COOK “A Series” cast aluminum airfoil propeller
  • ADB is a belt drive unit available in 7 sizes from 16 to 48 inches. Performance ranges from 1,600 to 38,000 CFM, with static pressures from 0 to 1/2 inches.

Description: Fan shall be a tube axial, belt driven, cast aluminum airfoil blade propeller fan.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705).

Construction: Fan shall be of welded and bolted construction utilizing corrosion resistant fasteners. The steel drum shall be constructed of minimum 14 gauge steel with integral flanges on both inlet and outlet. External lubrication lines shall be furnished for lubrication of fan bearings. Adjustable motor plate shall use threaded studs for positive belt tensioning and alignment. Unit shall bear an engraved aluminum nameplate and shall be shipped in ISTA Certified Transit Tested Packaging.

Coating: All steel fan components shall be Lorenized® with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Propeller: Propeller shall be cast aluminum airfoil design with cast aluminum hub. The blade pitch shall be factory set and locked using set screws and roll pin. The hub shall be keyed and locked to the shaft utilizing two set screws or a taper lock bushing. Propeller shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be Nema design B with class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be designed and individually tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball type in a cast iron housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150 percent of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be type ADB as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)

pw-xwd dimension drawing

Size A B C D E F Drum Gauge Ship Wt.
16 16 19-1/2 1-1/2 11-3/8 15 12-7/16 14 ga. 90
20 20 23-1/2 1-1/2 13-3/8 17 14-1/8 14 ga. 110
24 21 27-1/2 1-1/2 14-1/8 20 16-1/8 12 ga. 147
30 25 33-1/2 1-1/2 19-1/8 22 18-1/8 12 ga. 224
36 30 39-1/2 1-1/2 18-3/4 25 21-1/8 12 ga. 315
42 31 45-3/4 1-5/8 19-3/8 29 21-1/8 10 ga. 390
48 33 52-3/4 2-1/8 19-3/4 31 21-1/8 10 ga. 470
Weight in pounds, less motor.
lxu

Type EDD is furnished standard with UL 705 & cUL 705 listing (Power Ventilator/ZACT).

EDD

Tube Axial Fan
Extruded Aluminum Propeller
Direct Drive

  • EDD utilizes the COOK “E series” extruded aluminum airfoil propeller.
  • EDD is a direct drive unit available in 5 sizes from 24 to 48 inches. Performance ranges from 1,800 to 44,000 CFM, with static pressures from 0 to 1 inches.

Description: Fan shall be a tube axial, direct drive, extruded aluminum blade airfoil propeller fan.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705).

Construction: Fan shall be of welded and bolted construction utilizing corrosion resistant fasteners. The steel drum shall be constructed of minimum 12 gauge steel with integral flanges on both inlet and outlet. Unit shall bear an engraved aluminum nameplate and shall be shipped in ISTA Certified Transit Tested Packaging.

Coating: All steel fan components shall be Lorenized® with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hours salt spray under ASTM B117 test method.

Propeller: Propeller shall be extruded aluminum airfoil design with cast aluminum hub. The blade pitch shall be factory set and locked using set screws and roll pin. The hub shall be keyed and locked to the shaft utilizing two set screws or a taper lock bushing. Propeller shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be NEMA design B with a minimum of class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Product: Fan shall be type EDD as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)

pw-xwd dimension drawing

Size A B C Drum Gauge Ship Wt.
24 19 27-1/2 1-1/2 12 ga. 115
30 25 33-1/2 1-1/2 12 ga. 165
36 25 39-1/2 1-1/2 12 ga. 190
42 30 45-3/4 1-5/8 10 ga. 310
48 31 52-3/4 2-1/8 10 ga. 395
Weight in pounds, including standard ODP motor.
lxu

LOREN COOK COMPANY certifies that the EDB shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program. EDB performance ratings shown on pages 17-20.

Type EDB is furnished standard with UL 705 & cUL 705 listing (Power Ventilator/ZACT) when furnished with factory supplied motor.

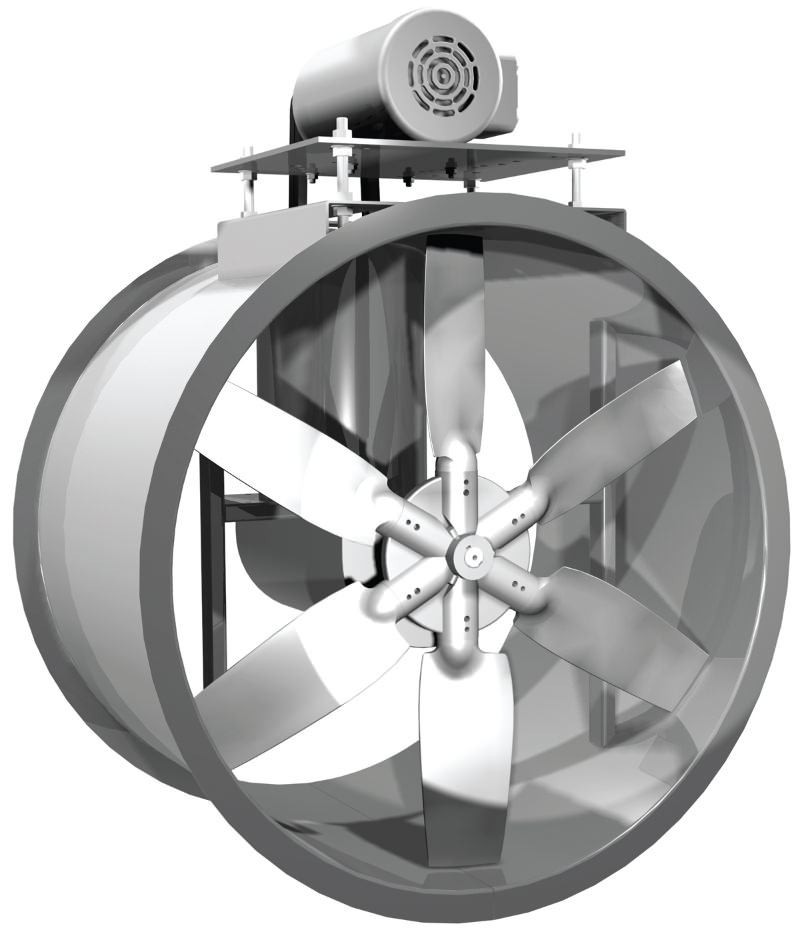

EDB

Tube Axial Fan
Extruded Aluminum Propeller
Belt Drive

  • EDB utilizes the COOK “E series” extruded aluminum airfoil propeller.
  • EDB is a belt drive unit available in 7 sizes from 24 to 60 inches. Performance ranges from 3,400 to 73,000 CFM, with static pressures from 0 to 1 inches.

Description: Fan shall be a tube axial, belt driven, extruded aluminum airfoil blade propeller fan.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL 705) and UL listed for Canada (cUL 705). Fan shall bear the AMCA Certified Ratings Seal for Air Performance.

Construction: Fan shall be of welded and bolted construction utilizing corrosion resistant fasteners. The steel drum shall be constructed of minimum 12 gauge steel with integral flanges on both inlet and outlet. External lubrication lines shall be furnished for lubrication of fan bearings. Adjustable motor plate shall use threaded studs for positive belt tensioning and alignment. Unit shall bear an engraved aluminum nameplate and shall be shipped in ISTA Certified Transit Tested Packaging.

Coating: All steel fan components shall be Lorenized® with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Propeller: Propeller shall be extruded aluminum airfoil design with cast aluminum hub. The blade pitch shall be factory set and locked using set screws and roll pin. The hub shall be keyed and locked to the shaft utilizing two set screws or a taper lock bushing. Propeller shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be Nema design B with class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be designed and individually tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball type in a cast iron housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150 percent of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM

Product: Fan shall be type EDB as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

Dimensions (Inches)

pw-xwd dimension drawing

Size A B C D E F G H J Drum Gauge Ship Wt.
24 21 27-1/2 1-1/2 14-1/8 20 16-1/8 5-1/4 16-5/16 9-3/4 12 ga. 147
30 25 33-1/2 1-1/2 19-1/8 22 18-1/8 5-1/4 16-5/16 9-3/4 12 ga. 224
36 30 39-1/2 1-1/2 18-3/4 25 21-1/8 6-3/4 17-13/16 12-3/4 12 ga. 315
42 31 45-3/4 1-5/8 19-3/8 29 21-1/8 6-3/4 17-13/16 12-3/4 10 ga. 390
48 33 52-3/4 2-1/8 19-3/4 31 21-1/8 6-3/4 17-13/16 12-3/4 10 ga. 470
54 38 58-3/4 2-1/8 24-1/4 35 24-1/8 10 19-9/16 17 10 ga. 585
60 41 64-3/4 2-1/8 24-1/4 35 24-1/8 10 19-9/16 17 10 ga. 705
Weight in pounds less motor.
