CP: Steel and Aluminum Vent Sets

  • CPV / CPS / CPS-A
  • CPA
  • CPF-B
  • CPF-D
  • Standard Construction Features
  • Certifications logos, vary by model
CPV / CPS / CPS-A

CPV / CPS / CPS-A

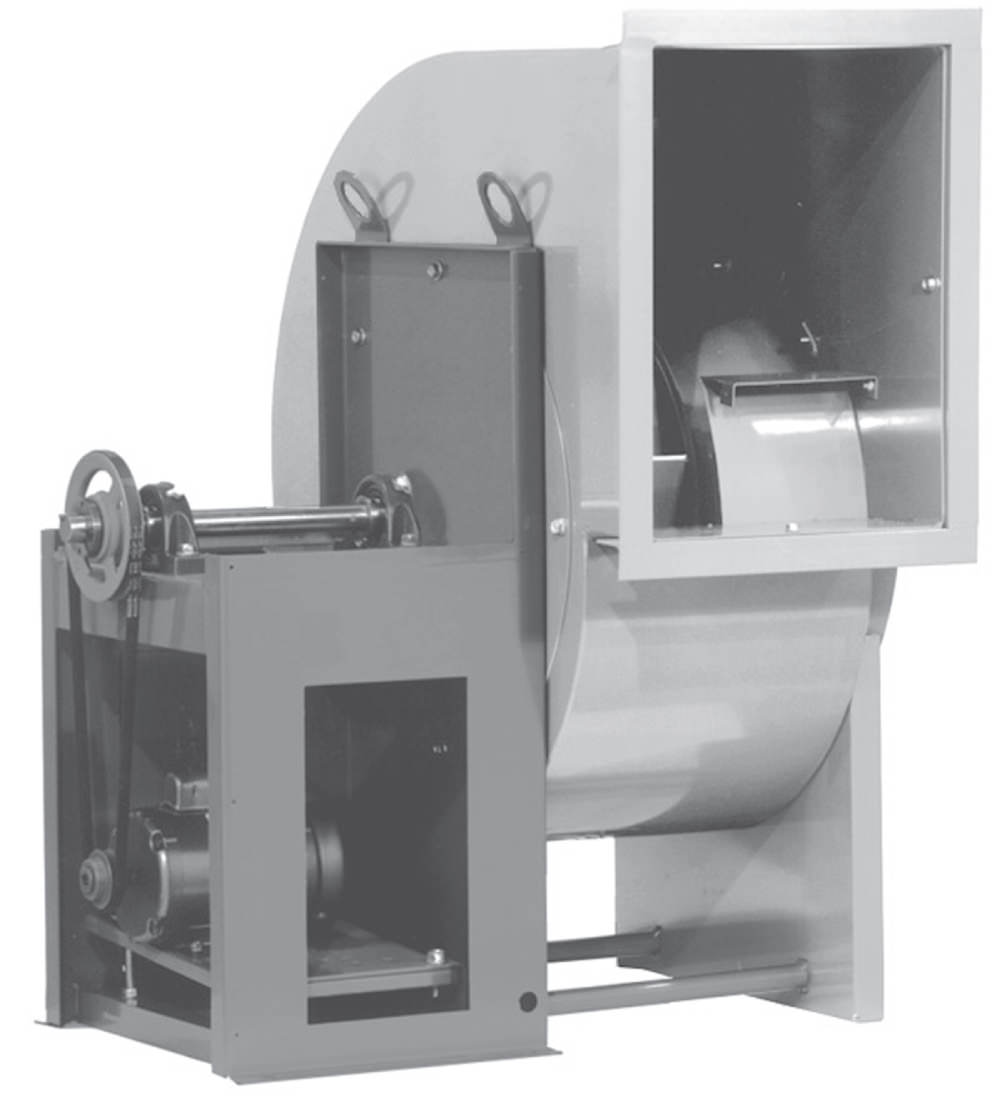

CPA / CPA-A

CPA / CPA-A

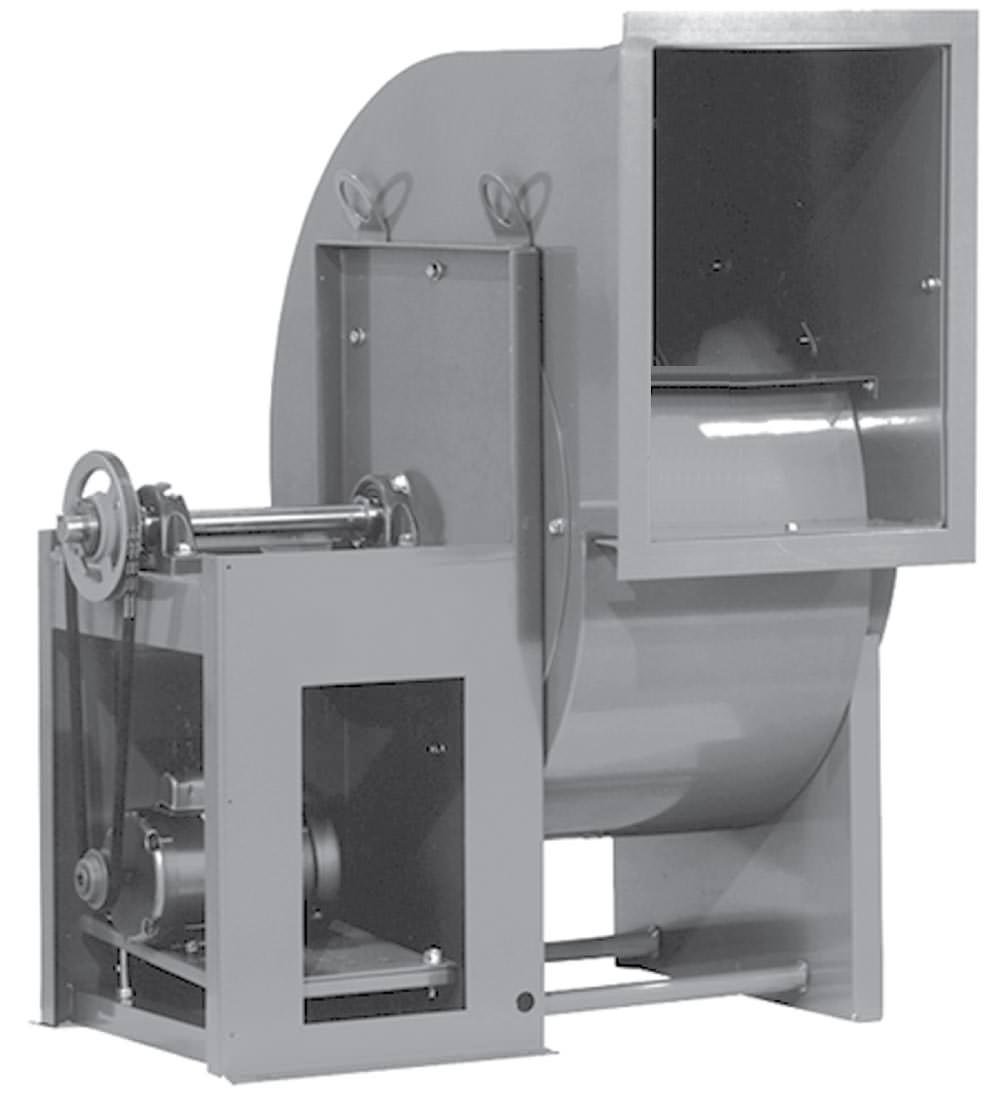

CPF-B

CPFB

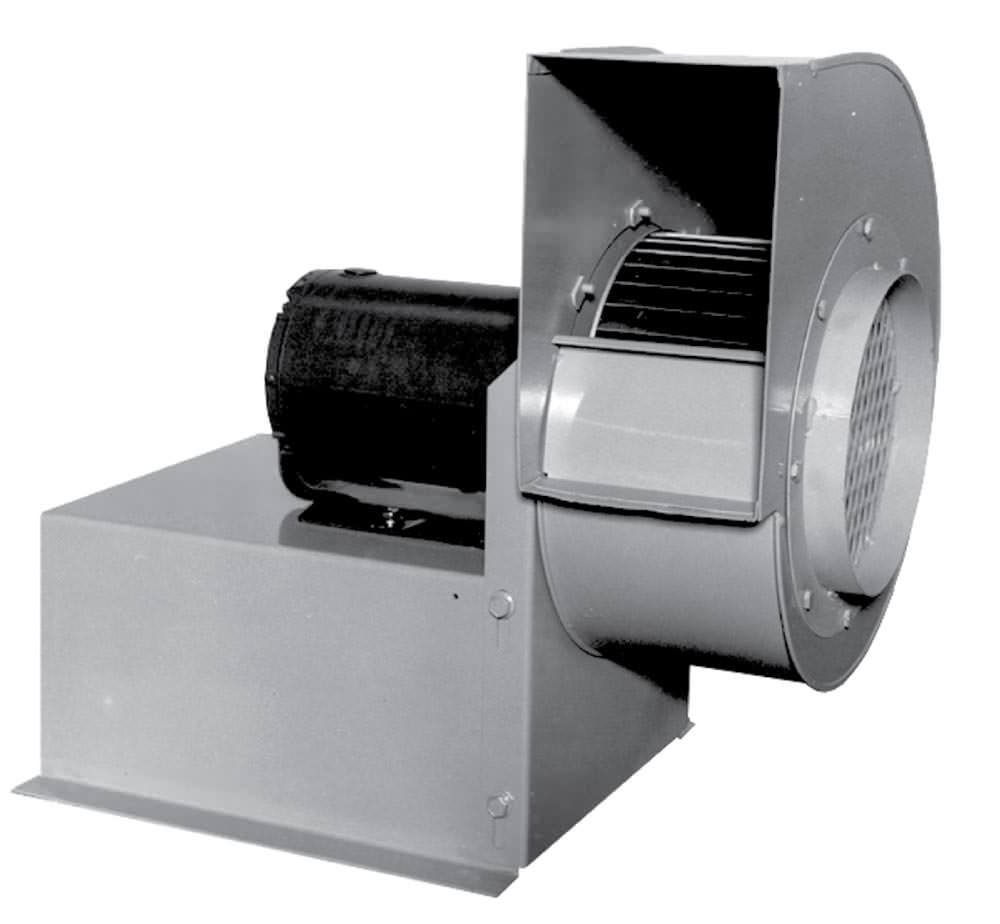

CPF-D

CPFD

Standard Construction Features

Standard Construction Features

AMCA-Sound & Air Cert. logo

Certifications logos, vary by model

LOREN COOK COMPANY CP centrifugal utility vent sets offer durability and reliability in a self-contained package.

About Centrifugal Fans: A centrifugal wheel brings air in parallel to the axis of rotation and discharges air perpendicular to the axis of rotation. As a general rule, it is preferred for higher pressure exhaust and ducted systems

CP’s are ideal for low to medium volume and pressure applications. They are available in a number of wheel options for maximum performance flexibility.
  • Produced in an ISO 9001 Certified facility.
  • Listed by Underwriters Laboratory (UL 705) and UL Listed for Canada (cUL 705).
  • Rotatable housing is standard on all models. Discharge flanges are standard on all belt drive models, except in downblast or bottom angular down discharge positions (see Catalog page 17).

Wheel

wheel

CPV uses a riveted aluminum wheel, with backward inclined flat blades.

CPS uses a welded, LorenizedTM steel wheel, with backward inclined flat blades. CPA uses a welded, aluminum wheel.

CPS-A uses a welded, LorenizedTM steel wheel, with backward inclined airfoil blades. CPA-A uses a welded, aluminum wheel.

CPFB & CPFB use a steel wheel, with forward curved blades

Blade type

AirfoilBackward Inclined Airfoil: Has the highest efficiency of all of the centrifugal impeller designs with blades of airfoil contour curved away from the direction of rotation. Air leaves the impeller at a velocity less than its tip speed. Relatively deep blades provide for efficient expansion with the blade passages. For the given duty, the airfoil impeller design will provide for the highest speed of the centrifugal fan designs.

Flat bladesBackward Inclined Flat Blades: Efficiency is slightly less than that of the airfoil design. Blades are single thickness metal inclined away from the direction of rotation. Air leaves the impeller at a velocity less than its tip speed. Relatively deep blades provide efficient expansion with the blade passages.

Forward Curved: Efficiency is less than airfoil and backward curved bladed impellers. Has blades with both the heel and tip curved forward. Air leaves the impeller at velocities greater than the impeller tip speed. For the given duty, the wheel is the smallest of all of the centrifugal types and operates most efficiently at lowest speed.



Belt Drives

Backward Inclined Flat Blade Wheel: CPS, CPA & CPV

Licensed to bear AMCA Certified Ratings Seals for Air and Sound Performance. UL/cUL 762 listing for restaurant applications available.

Steel Wheel / Steel Scroll (CPS)
Aluminum Wheel / Aluminum Scroll (CPA)

  • Wheel Sizes: 10 - 49”
  • Capacity: 70 - 49,150 CFM
  • Static Pressure: 1 - 8”
  • Class I or Class II (size 120 - 365)
  • CPA is Spark Resistant Type A construction (see Catalog page 19)

Aluminum Wheel / Steel Scroll (CPV)

  • Wheel Sizes: 10 - 49”
  • Capacity: 50 - 43,400 CFM
  • Static Pressure: 0.25 - 2.5”

Backward Inclined Airfoil Wheel: CPS-A & CPA-A

Licensed to bear AMCA Certified Ratings Seals for Air and Sound Performance. UL/cUL 762 listing for restaurant applications available.

Steel Wheel / Steel Scroll (CPS-A)
Aluminum Wheel / Aluminum Scroll (CPA-A)

  • Wheel Sizes: 12 - 49”
  • Capacity: 700 - 53,550 CFM
  • Static Pressure: 1 - 8”
  • Class I or Class II (size 120 - 365)
  • CPA-A is Spark Resistant Type A construction. (see Catalog page 19)
    CPS-A is available with UL/cUL listing for “Power Ventilator for
    Smoke Control Systems”.

Forward Curved Wheel: CPFB

Licensed to bear AMCA Certified Ratings Seal for Air and Sound Performance.

Steel Wheel / Steel Scroll (CPFB)

  • Wheel Sizes: 10 - 30”
  • Capacity: 500 - 25,000 CFM
  • Static Pressure: 0.125 - 2”

Direct Drives

Forward Curved Wheel: CPFD

Steel Wheel / Steel Scroll (CPFD)

  • Wheel Sizes: 6 - 12”
  • Capacity: 203 - 2,635 CFM
  • Static Pressure: 0.125 - 2”


Related Documents

See the Downloads tab for Specifications, Submittals, and FanDrafter files

See also CA / CF - Restaurant Upblast Centrifugal Roof Exhaust Ventilator


  • CPV

  • CPS

  • CPA

  • CPS-A

  • CPA-A

  • CPFB

  • CPFD

  • Downloads

CPV

LOREN COOK COMPANY certifies that the CPV shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type CPV is furnished standard with UL 705 and cUL 705 listings (Power Ventilator/ZACT) when furnished with factory supplied motor.

Type CPV is available with UL 762 listing (CUL 762) when furnished with factory supplied motor.


Up to size 300 available with express service. Read more.

CPV

Centrifugal Vent Set Blower
Backward Inclined Aluminum Wheel
Steel Housing
Belt Drive

Description: Fan shall be a single width, single inlet, backward inclined flat blade, belt driven centrifugal vent set.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL/cUL 705) for US and Canada. For restaurant applications, fan shall be listed by Underwriters Laboratories (UL/cUL 762) for US and Canada. Fan shall bear the AMCA Certified Ratings Seal for Sound and Air performance.

Construction: The fan shall be of bolted and welded construction utilizing corrosion resistant fasteners. The scroll wrapper shall be minimum 14 gauge steel and the scroll side panels shall be minimum 12 gauge steel. The entire fan housing shall have continuously welded seams for leakproof operation. A performance cut-off shall be furnished to prevent the recirculation of air in the fan housing. The fan housing shall be field rotatable to any one of eight discharge positions and shall have a minimum 1-1/2 inch outlet discharge flange. Bearing support shall be minimum 10 gauge welded steel. Side access inspection ports shall be provided with quick release latches for access to the motor compartment without removing the weather cover. Lifting lugs shall be provided for ease of installation. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM, static pressure, and maximum fan RPM. Unit shall be shipped in ISTA Certified Transit Tested Packaging.

Coating: Steel fan components shall be LorenizedTM with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Wheel: Wheel shall be centrifugal backward inclined, constructed of 100% aluminum, including a precision machined cast aluminum hub. Wheel hub shall be keyed and securely attached to the fan shaft. Wheel inlet shall overlap an aerodynamic aluminum inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be NEMA Design B with Class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Blower Shaft: Blower shaft shall be AISI C-1045 hot rolled and accurately turned, ground and polished. Shafting shall be sized for a critical speed of at least 125% of maximum RPM.

Bearings: Bearings shall be designed and tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball or roller type in a cast iron pillowblock housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150% of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be model CPV as manufactured by LOREN COOK COMPANY of Springfield, Missouri.



CPS

LOREN COOK COMPANY certifies that the CPS shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program.



Type CPS is furnished standard with UL 705 and cUL 705 listings (Power Ventilator/ZACT) when furnished with factory supplied motor.

Type CPS is available with UL 762 listing (CUL 762) when furnished with factory supplied motor.

Type CPS is also available with UL Power Ventilator for Smoke Control Systems Listing when furnished with factory supplied motor.


Up to size 300 are available with express service. Read more.

CPS

Centrifugal Vent Set Blower
Backward Inclined Wheel
Steel Construction
Belt Drive

Description: Fan shall be a single width, single inlet, backward inclined flat blade, belt driven centrifugal vent set.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL/cUL 705) for US and Canada. For restaurant applications, fan shall be listed by Underwriters Laboratories (UL/cUL 762) for US and Canada. For smoke control applications, fan shall be listed by Underwriters Laboratories (Power Ventilator for Smoke Control Systems) for US and Canada. Fan shall bear the AMCA Certified Ratings Seal for Sound and Air performance.

Construction: The fan shall be of bolted and welded construction utilizing corrosion resistant fasteners. The scroll wrapper shall be a minimum 14 gauge steel and the scroll side panels shall be a minimum 12 gauge steel. The entire fan housing shall have continuously welded seams for leakproof operation. A performance cut-off shall be furnished to prevent the recirculation of air in the fan housing. The fan housing shall be field rotatable to any one of eight discharge positions and shall have a minimum 1-1/2 inch outlet discharge flange. Bearing support shall be minimum 10 gauge welded steel. Side access inspection ports shall be provided with quick release latches for access to the motor compartment without removing the weather cover. Lifting lugs shall be provided for ease of installation. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM, static pressure, and maximum fan RPM. Unit shall be shipped in ISTA Certified Transit Tested Packaging.

Coating: Steel fan components shall be LorenizedTM with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Wheel: Wheel shall be steel centrifugal backward inclined, non-overloading flat blade type. Blades shall be continuously welded to the backplate and deep spun inlet shroud. Wheel hub shall be keyed and securely attached to the fan shaft. Wheel inlet shall overlap an aerodynamic aluminum inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be NEMA Design B with Class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be designed and tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball or roller type in a cast iron pillowblock housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Blower Shaft: Blower shaft shall be AISI C-1045 hot rolled and accurately turned, ground and polished. Shafting shall be sized for a critical speed of at least 125% of maximum RPM.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150% of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be model CPS as manufactured by LOREN COOK COMPANY of Springfield, Missouri.



CPA
LOREN COOK COMPANY certifies that the CPA shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and comply with the requirements of the AMCA Certified Ratings Program.

Type CPA is furnished standard with UL 705 listing (CUL 705) when furnished with factory supplied motor.

Type CPA is available with UL 762 listing (CUL 762) when furnished with factory supplied motor.

CPA

Centrifugal Vent Set Blower
Backward Inclined Wheel
Aluminum Wheel and Housing
Belt Drive

  • CPA utilizes a backward inclined flat blade, aluminum wheel and aluminum housing.
  • CPA is considered to be Spark Resistant Type A construction, see page 20 for details.
  • Available in 20 belt drive sizes from 60 to 490. Performance ranges from 70 to 69600 CFM with static pressures from 1 to 8 inches.

Description: Fan shall be a single width, single inlet, backward inclined flat blade, belt driven centrifugal
vent set featuring spark resistant AMCA Type A construction.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL/cUL 705) for US and Canada. For restaurant applications, fan shall be listed by Underwriters Laboratories (UL/cUL762) for US and Canada. Fan shall bear the AMCA certified ratings seal for air performance.

Construction: The fan shall be of bolted and welded construction utilizing corrosion resistant fasteners. The scroll wrapper shall be minimum 0.100" aluminum and the scroll side panels shall be minimum 0.100" aluminum. The entire fan housing shall have continuously welded seams for leakproof operation. A performance cut-off shall be furnished to prevent the recirculation of air in the fan housing. The fan housing shall be field rotatable to any one of eight discharge positions and shall have a minimum 1-1/2 inch outlet discharge flange. Bearing support shall be minimum 10 gauge welded steel. Side access inspection ports shall be provided with quick release latches for access to the motor compartment without removing the weather cover. Lifting lugs shall be provided for ease of installation. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM, static pressure, and maximum fan RPM. Unit shall be shipped in ISTA certified transit tested packaging.

Coating: Steel fan components shall be LorenizedTM with an electrostatically applied, baked polyester powder coating. Each powder coated component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Wheel: Wheel shall be aluminum centrifugal backward inclined, non-overloading flat blade type. Blades shall be continuously welded to the backplate and deep spun inlet shroud. Wheel hub shall be keyed and securely attached to the fan shaft. Wheel inlet shall overlap an aerodynamic aluminum inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be Nema design B with class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be designed and tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball or roller type in a cast iron pillow block housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Blower Shaft: Blower shaft shall be Type 316 Stainless Steel accurately turned, ground and polished. Shafting shall be sized for a critical speed of at least 125% of maximum RPM.

Product - Fan shall be model CPA as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

CPS-A
LOREN COOK COMPANY certifies that the CPS-A shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program. Certified sound rating data is available upon request. Refer to catalog LW-CA SWSI/DWDI, May 1991.

Type CPS-A is furnished standard with UL 705 listing (CUL 705) when furnished with factory supplied motor.

Type CPS-A is available with UL 762 listing (CUL 762) when furnished with factory supplied motor.

Type CPS-A is available with UL Power Ventilator for Smoke Control Systems Listing when furnished with factory supplied motor.



All sizes are available with express service. Read more.

CPS-A

Centrifugal Vent Set Blower
Airfoil Wheel
Steel Construction
Belt Drive

  • CPS-A utilizes a backward inclined airfoil blade, steel wheel and a steel housing
  • Performance ranges from 700 to 74600 CFM with static pressures from 1 to 8 inches.
  • Available in 16 sizes from 120 to 490.

Description: Fan shall be a single width, single inlet, backward inclined airfoil, belt driven centrifugal vent set.

Certifications: Fan shall be manufactured at an ISO 9001 certified facilty. Fan shall be listed by Underwriters Laboratories (UL/cUL 705) for US and Canada. For restaurant applications, fan shall be listed by Underwriters Laboratories (UL/cUL 762) for US and Canada. For smoke control applications, fan shall be listed by Underwriters Laboratories (Power Ventilator for Smoke Control Systems) for US and Canada. Fan shall bear the AMCA certified ratings seal for sound and air performance.

Construction: The fan shall be of bolted and welded construction utilizing corrosion resistant fasteners. The scroll wrapper shall be a minimum 14 gauge steel and the scroll side panels shall be a minimum 12 gauge steel. The entire fan housing shall have continuously welded seams for leakproof operation. A performance cut-off shall be furnished to prevent the recirculation of air in the fan housing. The fan housing shall be field rotatable to any one of eight discharge positions and shall have a minimum 1-1/2 inch outlet discharge flange. Bearing support shall be minimum 10 gauge welded steel. Side access inspection ports shall be provided with quick release latches for access to the motor compartment without removing the weather cover. Lifting lugs shall be provided for ease of installation. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM, static pressure, and maximum fan RPM. Unit shall be shipped in ISTA certified transit tested packaging.

Coating: Steel fan components shall be LorenizedTM with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Wheel: Wheel shall be steel centrifugal airfoil blade type. Blades shall be continuously welded to the backplate and deep spun inlet shroud. Wheel hub shall be keyed and securely attached to the fan shaft. Wheel inlet shall overlap an aerodynamic aluminum inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be Nema design B with class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be designed and tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball or roller type in a cast iron pillow block housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Blower Shaft: Blower shaft shall be AISI C-1045 hot rolled and accurately turned, ground and polished. Shafting shall be sized for a critical speed of at least 125% of maximum RPM.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150% of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be model CPS-A as manufactured by LOREN COOK COMPANY of Springfield, Missouri.

CPA-A
LOREN COOK COMPANY certifies that the CPA-A shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type CPA-A is furnished standard with UL 705 listing (CUL 705) when furnished with factory supplied motor.

Type CPA-A is available with UL 762 listing (CUL 762) when furnished with factory supplied motor.



All sizes are available with express service. Read more.

CPA-A

Centrifugal Vent Set Blower
Airfoil Wheel
Aluminum Wheel and Housing
Belt Drive

Description: Fan shall be a single width, single inlet, backward inclined airfoil, belt driven centrifugal vent set featuring spark resistant Type A construction.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL/cUL 705) for US and Canada. For restaurant applications, fan shall be listed by Underwriters Laboratories (UL/cUL 762) for US and Canada. Fan shall bear the AMCA Certified Ratings Seal for Sound and Air Performance.

Construction: The fan shall be of bolted and welded construction utilizing corrosion resistant fasteners. The scroll wrapper shall be a minimum 0.100" aluminum and the scroll side panels shall be a minimum 0.100" aluminum. The entire fan housing shall have continuously welded seams for leakproof operation. A performance cut-off shall be furnished to prevent the recirculation of air in the fan housing. The fan housing shall be field rotatable to any one of eight discharge positions and shall have a minimum 1-1/2 inch outlet discharge flange. Bearing support shall be minimum 10 gauge welded steel. Side access inspection ports shall be provided with quick release latches for access to the motor compartment without removing the weather cover. Lifting lugs shall be provided for ease of installation. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM, static pressure, and maximum fan RPM. Unit shall be shipped in ISTA Certified Transit Tested Packaging.

Coating: Steel fan components shall be LorenizedTM with an electrostatically applied, baked polyester powder coating. Each powder coated component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Wheel: Wheel shall be aluminum centrifugal airfoil blade type. Blades shall be continuously welded to the backplate and deep spun inlet shroud. Wheel hub shall be keyed and securely attached to the fan shaft. Wheel inlet shall overlap an aerodynamic aluminum inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be NEMA Design B with Class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Bearings: Bearings shall be designed and tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball or roller type in a cast iron pillowblock housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Blower Shaft: Blower shaft shall be Type 316 Stainless Steel accurately turned, ground and polished. Shafting shall be sized for a critical speed of at least 125% of maximum RPM.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150% of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be model CPA-A as manufactured by LOREN COOK COMPANY of Springfield, Missouri.





ACRUD
LOREN COOK COMPANY certifies that the CPFB shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type CPFB is furnished standard with UL 705 listing (CUL 705) when furnished with factory supplied motor.


CPFB

Centrifugal Vent Set Blower
Forward Curve Wheel
Belt Drive

  • Utilizes a forward curve, steel wheel and steel housing.
  • Available in 8 belt drive sizes from 100 to 300. Performance ranges from 500 to 25000 CFM with static pressures from .125 to 3 inches.

Description: Fan shall be a single width, single inlet, forward curved, belt driven centrifugal vent set.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL/cUL 705) for US and Canada. Fan shall bear the AMCA Certified Ratings Seal for Sound and Air Performance.

Construction: The fan shall be of bolted and welded construction utilizing corrosion resistant fasteners. The scroll wrapper shall be minimum 14 gauge steel and the scroll side panels shall be minimum 12 gauge steel. The entire fan housing shall have continuously welded seams for leakproof operation. The fan housing shall be field rotatable to any one of eight discharge positions and shall have a minimum 1-1/2 inch outlet discharge flange. Bearing support shall be minimum 10 gauge welded steel. Side access inspection ports shall be provided with quick release latches for access to the motor compartment without removing the weather cover. Lifting lugs shall be provided for ease of installation. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM, static pressure, and maximum fan RPM. Unit shall be shipped in ISTA Certified Transit Tested Packaging.

Coating: Steel fan components shall be LorenizedTM with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Wheel: Wheel shall be centrifugal forward curved type. Wheel hub shall be keyed and securely attached to the fan shaft. Wheel shall utilize an aerodynamic aluminum inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be NEMA Design B with Class B insulation rated for continuous duty and furnished at the specified voltage, phase and enclosure.

Blower Shaft: Blower shaft shall be AISI C-1045 hot rolled and accurately turned, ground and polished. Shafting shall be sized for a critical speed of at least 125% of maximum RPM.

Bearings: Bearings shall be designed and tested specifically for use in air handling applications. Construction shall be heavy duty regreasable ball or roller type in a cast iron pillowblock housing selected for a minimum L50 life in excess of 200,000 hours at maximum cataloged operating speed.

Belts and Drives: Belts shall be oil and heat resistant, static conducting. Drives shall be precision machined cast iron type, keyed and securely attached to the wheel and motor shafts. Drives shall be sized for 150% of the installed motor horsepower. The variable pitch motor drive must be factory set to the specified fan RPM.

Product: Fan shall be model CPFB as manufactured by LOREN COOK COMPANY of Springfield, Missouri.



ACRUD
LOREN COOK COMPANY certifies that the CPFD shown herein is licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

Type CPFD is furnished standard with UL 705 listing (CUL 705) when furnished with factory supplied motor.


All sizes are available with express service. Read more.

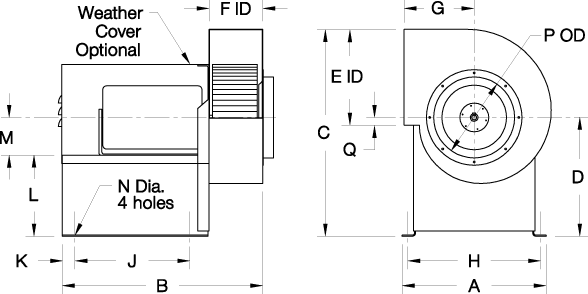

CPFD

Centrifugal Vent Set Blower
Forward Curved Wheel
Direct Drive

Description: Fan shall be a single width, single inlet, forward curved, direct driven centrifugal vent set.

Certifications: Fan shall be manufactured at an ISO 9001 certified facility. Fan shall be listed by Underwriters Laboratories (UL/cUL 705) for US and Canada. Fan shall bear the AMCA Certified Ratings Seal for Sound and Air Performance.

Construction: The fan shall be of bolted and welded construction utilizing corrosion resistant fasteners. The fan housing shall have air tight lock seams and shall be field rotatable to any one of eight discharge positions. Motor mount shall be minimum 14 gauge steel. Unit shall bear an engraved aluminum nameplate. Nameplate shall indicate design CFM and static pressure. Unit shall be shipped in ISTA Certified Transit Tested Packaging.

Coating: Steel fan components shall be LorenizedTM with an electrostatically applied, baked polyester powder coating. Each component shall be subject to a five stage environmentally friendly wash system, followed by a minimum 2 mil thick baked powder finish. Paint must exceed 1,000 hour salt spray under ASTM B117 test method.

Wheel: Wheel shall be centrifugal forward curved type. Wheel hub shall be securely attached to the motor shaft. Wheel shall utilize an aerodynamic inlet cone to provide maximum performance and efficiency. Wheel shall be balanced in accordance with AMCA Standard 204-05, Balance Quality and Vibration Levels for Fans.

Motor: Motor shall be heavy duty type with permanently lubricated sealed ball bearings and furnished at the specified voltage, phase and enclosure.

Product: Fan shall be model CPFD as manufactured by LOREN COOK COMPANY of Springfield, Missouri.



Catalog

Manual

Specifications

Submittals

CPV CPS CPA CPS-A CPA-A CPFB CPFD

FanDrafter files

CPV CPS CPA CPS-A CPA-A CPFB CPFD

Revit
